|Name||Color steel sandwich panel|
|Material of interlayer||Magnesium+Rock wool/PU/EPS|
|Material of steel sheet||Color steel sheet|
|Thickness of steel sheet||0.2-1.0MM|
|Color of top / back steel||Any RAL Colors,Usually White-gray/Sea blue/Red|
|Density of interlayer||30-60KG/CBM|

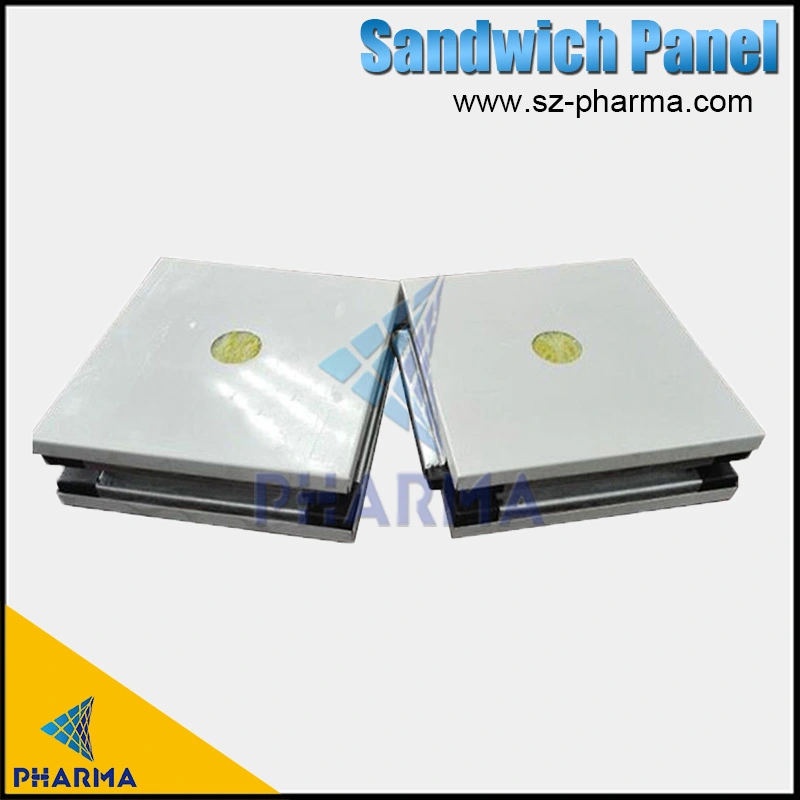

Color steel sandwich panels are a common product in current building materials, which not only can be very flame retardant, but
also environmentally friendly and efficient. The color steel sandwich panel is made of two upper and lower metal panels and a
middle layer polymer insulated inner core. It has the characteristics of easy installation, light weight and environmental protection.
1. Light weight: The weight per square meter is less than 24kg, which can fully reduce the structural cost.
2. Quick installation: light weight, plug-in, installation and free cutting characteristics, determine its easy installation, can improve
efficiency and save construction time.
3. Fire prevention: The surface material and insulation material of color steel composite core board are non-combustible or
non-combustible materials, which can meet the requirements of fire protection regulations.
4. Refractory: The color steel plate treated by special coating is kept for 10-15 years, and then the anti-corrosion coating is
sprayed every 10 years. The life of the plate is over 35 years.
5. Beautiful appearance: the clear lines of the profiled steel plate up to dozens of colors, can match the needs of any style of building
6. Thermal insulation: commonly used insulation materials are: rock wool, fiberglass cotton, polystyrene, polyurethane, etc.,
low thermal conductivity, with good thermal insulation effect.
